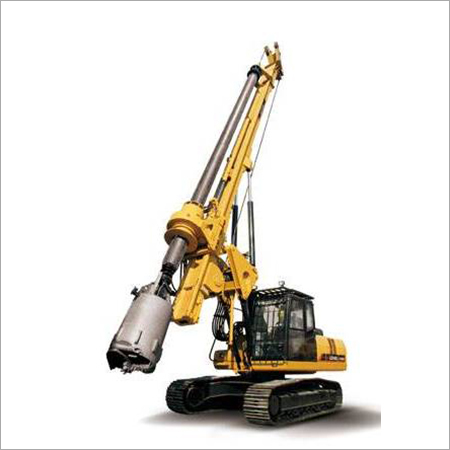

Hydraulic Bored Piling Rigs

Hydraulic Bored Piling Rigs
Hydraulic Bored Piling Rigs
Send Inquiry
Product Code : 01
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
  • Price Range
  • 90000.00 - 100000.00 USD ($)
Product Description

With years of experience in the market, we are manufacturers and exporters of Hydraulic Bored Piling Rigs. These large diameter piles are constructed using a solid stem auger or Kelly bar, which is ideal for hard ground conditions. These are generally constructed using a kelly bar with an aggressive auger attached, and then the hole is drilled to depth. Thus, to deliver excellent quality products, we manufacture those using high-grade raw materials and advanced technologies. Hydraulic Bored Piling Rigs are also tested over various quality parameters, in accordance with industry laid norms. These are mainly used for building foundation engineering into a hole of construction machinery.



modelHF330
Working modehydraulic oil cylinder pressure
Drilling diameter (mm)Φ500-Φ1500
drilling depth (m)10-30
Diamension (mm)10800X2800X3350mm
Total weight (t)25T
Power head max output torque (KN.m)100-120KN.m
Rotary speed (r/min)6-35RPM
Pressurized oil cylinder max pressure80KN
Pressurized oil cylinder max lifting force120KN
Main winch max lifting force150KN
Main winch max lifting speed45m/min
Assisting winch max lifting force30KN
Assiting winch max lifting speed60m/min
Pressurized oil cylinder max stroke2500mm
Mast sidewards inclination±4°
Mast forwards inclination
Max working pressure28Mpa
pilot pressure4Mpa
Travelling speed (km/h)2.3km/h
Working height12800mm
Diesel engine power (KW)205HP(150kw), Cummins, water cooling, turbo charger
Max torque425-735N·m



Flexible: the whole tonnage is small, simple operating, moving fast, convenient transition, etc features.
High returns: small investment, quick gains, economic advantages can not be replaced.
Technology patents: patent uses a unique technology to achieve a small torque but big power characteristics, thus achieve a small machine to drill big piling hole .



Trade Information
  • FOB Port
  • Tianjin
  • Payment Terms
  • Others, Paypal, Western Union, Telegraphic Transfer (T/T), Letter of Credit (L/C), Cheque
  • Supply Ability
  • 10 pieces Per Month
  • Delivery Time
  • 20-30 Days
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Standard packaging or as required by the client
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • Main Domestic Market
  • All India
